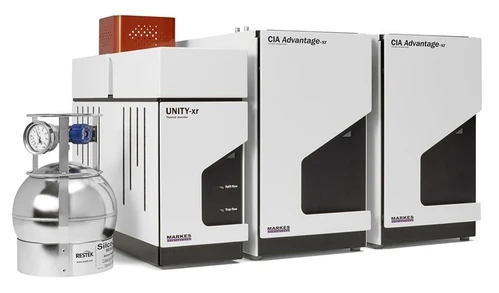

Markes CIA Advantage-xr

Product benefits

• Reduce running costs by avoiding the need for expensive and hazardous cryogen, and the associated risk of ice blockage of the flow path.

• Enhance throughput by simultaneously analysing very volatile organic compounds and polar species in humid samples using Dry-Focus3™ technology.

• Peace of mind – With unsurpassed analytical performance, UNITY–CIA Advantage-xr delivers the high-quality air monitoring results you demand.

• Expand your capabilities – Run multiple samples/standards, from sub-ambient pressure to 50 psig, at a range of concentrations, ppt to %, with addition to the focusing trap via loop or metered volumes.

• Future proof your lab – Incorporating method-compliant tube desorption and on-line sampling capabilities, CIA Advantage-xr allows you to respond to new applications and analysis requirements.

• Easy and intelligent operation – With built-in parameters for several standard methods, automated self-checking diagnostics, and usage/maintenance counters, you can quickly and easily get going and keep going.

• Be confident – you are buying state-of the-art, TO-15 (TO-15a) and HJ 759 compliant canister automation from the world’s leading manufacturer of air monitoring equipment.

Features

• Cryogen-free operation reduces running costs and increases lab safety.

• Up to 27 inert channels and overlap mode allows fast, round-the-clock, automated operation.

• Fully compliant with US EPA Method TO-15(A) and Chinese EPA Method HJ 759.

• High-concentration and trace-level samples or standards can be run in the same sequence, or even stacked into the same run.

• Low-pressure and sub-ambient samples can be run without needing pressurisation.

• Splitless to high-split analysis for optimum sensitivity and sample flexibility.

• Canister/whole-air and sorbent tube analysis all on one system, with the option to increase the tube automation to 100 tubes.

• Unsurpassed water management – Dry-Focus3 three-stage focusing incorporates the Kori-xr water-removal module to enhance performance for humid air streams, without using liquid cryogen.

• Heated inert internal lines and efficient purging combine to eliminate carryover between samples.

• Advanced software control – Markes Instrument Control (MIC) is the only software designed specifically for thermal desorption users. Get the most out of your instrument with features including automated intelligent diagnostics, leak isolation, usage/maintenance counters, rapid method set-up and customisable limits.

• Compatable with all major makes of GC and GC–MS, enabling easy integration into any laboratory.
